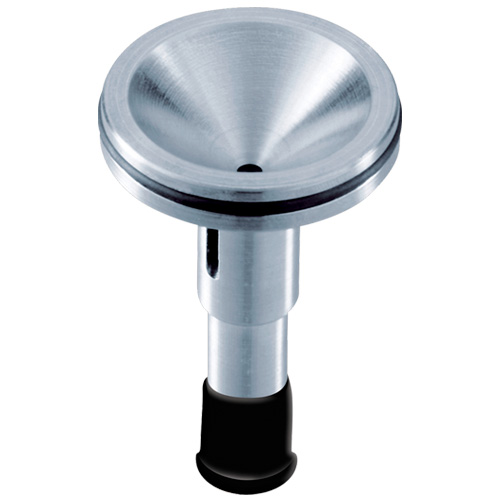

The SKC Aluminum Cyclone is specified in NIOSH methods for silica and respirable dust. The Aluminum Cyclone is operated at 2.5 L/min to conform to the ISO 7708/CEN criteria specified in the 2016 OSHA final rule on respirable crystalline silica and meets ACGIH respirable TLVs.
Features
- Operates at 2.5 L/min to conform to the ISO 7708/CEN criteria
- Meets requirements in the OSHA silica rule (page 16439)
- Suitable for ACGIH respirable TLVs
- Eliminates adverse electrostatic effects
- Small and lightweight
- 2.6 x 1.5 inches (6.6 x 3.8 cm)
- Specified in NIOSH Method 7500 for silica and NIOSH 0600 for respirable particulates
- Use with an open-face three-piece cassette for more even particle deposition
on the filter
- Available in 25 or 37 mm
- Inserts into middle ring of cassette
Specifications
Performance Profile
| Sample Time |
Varies |
| Sampling Rate |
2.5 L/min for 4-µm cut-point* (OSHA silica rule) |
| Sample Pump |
Universal XR or AirChek series |
| Sample Media |
25 or 37-mm filters in 3-piece cassettes |
| Tubing |
1/4-in ID |
* As previously published, a flow rate of 2.6 L/min will yield a 4-µm 50% cut-point, however, a 2.5 L/min flow rate will provide a better match
over the entire curve.
Order
| Description |
Cat. No. |
Aluminum Respirable Dust Cyclone, 25 mm
Aluminum Respirable Dust Cyclone, 25 mm |
225-01-01 |
Aluminum Respirable Dust Cyclone, 37 mm
Aluminum Respirable Dust Cyclone, 37 mm |
225-01-02 |
Calibration Adapter, for Aluminum Cyclone
Calibration Adapter, for 25 and 37-mm Aluminum Cyclones |
225-01-03 |
Cyclone Replacement O-Rings
Cyclone Replacement O-Rings, for use in Aluminum Cyclone Cat. No. 225-01-02 and Cyclone Cat. No. 225-100 GS-3, pk/5 |
P2250 |
Replacement Grit Pot, for Aluminum Cyclone
Replacement Grit Pot, for Aluminum Cyclone, pk/25 |
P225013 |
Replacement O-Rings, Used in Cyclone Calibration Adapter
Replacement O-Rings, used in Cyclone Calibration Adapter Cat. No. 225-01-03, pk/5 |
P22503 |
Accessories
| Description |
Cat. No. |
AirChek XR5000 Sample Pump, High-power Li-Ion
AirChek® XR5000 Pump only, with high-power Li-Ion battery, charger not included Flow range: Constant flow 5 to 5000 ml/min Low flows from 5 to 500 ml/min require a low flow kit. UL approved for intrinsic safety |
210-5001 |
Filter Cassette Blanks, 25 mm, Clear Styrene, pk/50
SureSeal Filter Cassette Blank, 3 sections, 25 mm, clear styrene, certified leak free to ensure high quality sampling results, pk/50 |
225-3-25LF |
Filter Cassette Holder
Filter Cassette Holder, accommodates two or three-part 37-mm cassettes with or without a cyclone, 25-mm cassette with cowl, or DPM cassette with a GS-1 Cyclone; clips to a worker's collar. Includes 3 feet of 1/4 inch ID Tygon tubing and 25-mm adapter ring. |
225-1 |
Filter Cassettes, Blank, 37 mm, Clear Styrene
SureSeal, 3 sections, 37 mm, clear styrene filter cassette blank, certified leak free to ensure high quality sampling results, pk/50 |
225-3050LF |
Replacement Grit Pot, for Aluminum Cyclone
Replacement Grit Pot, for Aluminum Cyclone, pk/25 |
P225013 |
Tygon Tubing
Tygon Tubing, 1/4-inch ID x 3/8-inch OD,fits over impinger side arm, impinger inlet, filter cassette outlet, or Luer adapter. 50 feet |
225-1345 |
